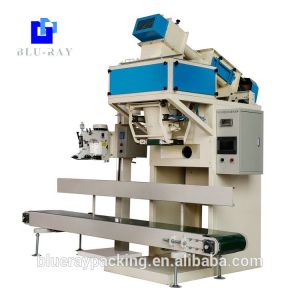

Semi Automatic flour strach powder Bagging Machine DCS-50F

Name: Semi Automatic flour strach powder Bagging Machine DCS50F
Brand: BLU-RAY
Price: 5 USD

Wholesale Semi Automatic flour strach powder Bagging Machine DCS-50F from china suppliers

Place of Origin : Jiangxi, China

Brand Name : BLU-RAY

Model Number : DCS-50F

Certification : CE, ISO, CMC

Supply Ability : 100 Set/Sets per Month

Packaging Details : 1, Each set of powder filling machine will be packed in a big wooden case, then in the container 2, Customized needs available

MOQ : 1 Set/Sets

Price : $5,000.00 - $10,000.00 / Set

Type : Filling Machine

Condition : New

Application : Other

Packaging Type : Bags

Packaging Material : Wood

Automatic Grade : Semi-automatic

Driven Type : Electric and Pneumatic

Voltage : 220V/380V/50HZ or as your need

Power : 3-6kw

Dimension(L*W*H) : 3000mm*1100mm*3200mm or customized

Weight : 1000kg

Product name : powder filling machine

Three load cell : 3 load cell high weighing accuracy

Three travelling cylinder : feeding speed with fast-midium-slow

Control box : full touch screen panel

Automatic bag clamp : sensor control

PLC system : easy operating

Packing material : any type of powder

Sewing machine : full automatic with data record

OEM service : 15 years R&D experience

Quality warranty : one year

After-sales Service Provided : Engineers available to service machinery overseas

Port : Shanghai or any port of China

Contact Now

Product Description

Product Name	Single weighing hopper Screw feeding mechanism packing/packaging/bagging/filling machine
Item	DCS-50F
Application Materials	Powder materials such as flour, starches, lime powder, cement, fertilizer,silica sand powder,nitrate of potash, ammonium sulfate etc
Display Resolution	5g, 10g
Weighing Range	10-50kg/bag or customized needs
Precision	+/-(0.1-0.2)% FS
Packing Capacity	240-360bags/hour or more fast depend on your materials
Dimension(LWHmm)	See detailed drawing, the size can be customized according to your site
Power Supply	AC220V/380V, 50HZ, 1P/3P
Air Source	0.5-0.7 Mpa
Power	3KW-6KW
Working Temperature	-10~40 ℃
Relative Humidity	≤90% RH(Non-condensing)

Machine Accessories

Description	Remarks
Packing scale framework	Floor structure, high quality carbon steel
Feeding mechanism	Screw feeding type, three grade feeding speed with fast-medium-slow
Weighing sensor	Installation 3pcs(DCS-50WF,DCS-50F)/6pcs(DCS-50SF) load cell, famous brand
Control system	PLC system, full automatic, data record & print function
Control box	Color touch screen, English/Chinese interface
Cylinder	AirTAC brand, big force, high quality, more stable, long service life
Solenoid valve	AirTAC brand, with indicator
Electric component	Schneider brand, short circuit protection function
Pneumatic component	AirTAC brand, stable and reliable
Motor	Frequency conversion motor with smooth working
Automatic sewing machine	Photoelectric induction control, automatic thread knife cut, date record & print
Belt type bag conveyor	Speed governing design

Application

Semi Automatic flour strach powder Bagging Machine DCS-50F

Detailed Images

DCS-50F 240-360bags/hour DUAL AUGER FEEDING packing/packaging/bagging/filling machine picture

Semi Automatic flour strach powder Bagging Machine DCS-50F

CMC flour bagging machine

DCS-50F flour filling machine

Semi auto bagger machine

Semi Automatic flour strach powder Bagging Machine DCS-50F Images
